Project Spotlight

Structural Floor Framing Reinforcement – Malden, MA

This single-family home in Malden, MA was facing serious structural issues related to its floor framing system. The SurfZone Engineering Consultants team was brought in to assess, redesign, and reinforce the structure to ensure long-term stability, safety, and code compliance.

Provided Services

  • Structural Engineering Assessment

  • Load Calculations & Framing Evaluation

  • Beam Sizing and Framing Layout

  • Reinforced Concrete Footing Design

  • PE-Stamped Structural Plans for Permitting

  • Construction Administration & Final Inspection

Key Structural Issues Identified

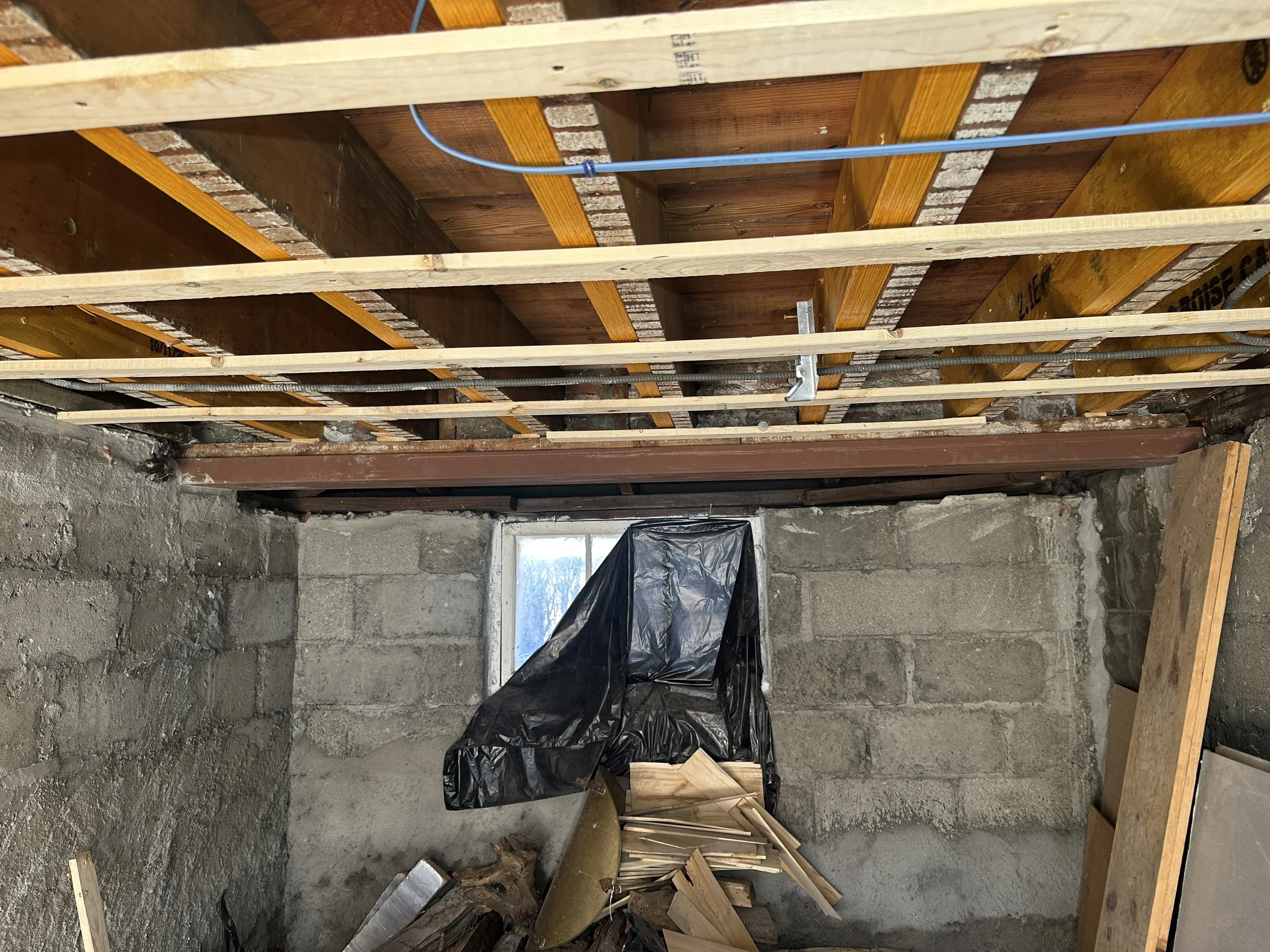

Compromised Beam Support

The main support beam exhibited significant deflection and cracking. The post supporting it was located near a chimney with no footing, raising serious concerns about stability and load transfer.

Undersized and Unsupported Floor Joists

The floor framing system was undersized, resulting in a bouncy and unsafe floor. End supports for the joists were structurally compromised, threatening the system’s integrity.

Structural Design Solutions

New Engineered Beam

We designed and specified a new structural beam to stabilize the floor framing system and ensure compliance with current building codes.

Reinforced Footings

New reinforced concrete footings were poured to properly distribute loads and enhance support system stability.

Framing System Reinforcement

Reinforcements were tailored to the existing span, with special attention to ceiling height constraints to maintain headroom while strengthening the end support beam.

Project Conclusion

This project highlights how timely engineering intervention can restore the structural health of a residential property. Our team delivered custom solutions to address multiple failure points, resulting in a safer, code-compliant home with long-term load stability.

📸 Visual highlights of the beam reinforcement, floor system upgrade, and structural detailing available on request.
